Description
Description

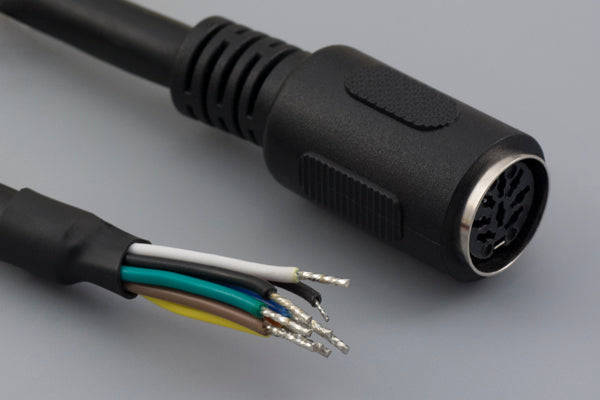

Cable, 1830 mm, 8P DIN female 50-00182, to stripped tinned, 20 AWG, UL2464 30-00028, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | din |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 8 |
| # of connector contacts | 8 |
| wire outer Ø | 8.0 mm |
| AWG | 20 |
| cable style | round |
| shield | foil |
| jacket material | PVC |
| bend radius | 48 mm |
| color | black |
| cable length | 1830 mm |
| operating temperature | 80 °C |
| voltage rating | 12 V |
| current rating | 2.0 A |
| UL style | 2464 |
| connector 1 | 50-00182 |
| connector 2 | stripped and tinned |
| wire part # | 30-00028 |
| HTS code | 8544.42.9090 |
| unit weight | 229.20g |
| Prop65 | Vinyl Chloride |
