Description
Description

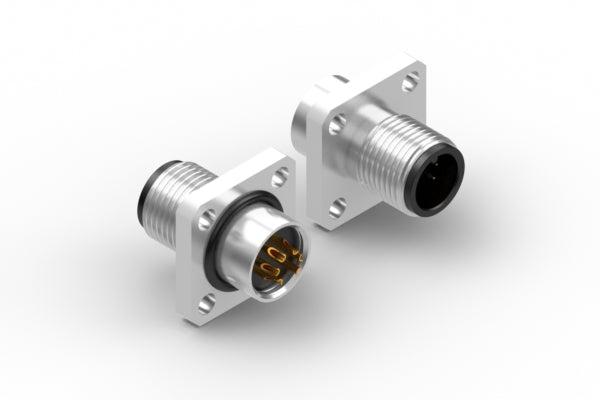

Connector, M12 A-code plug, 6 pin, 12xL24 mm, flange mount, solder cup, gold plated, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| M type | M12 |
| # of connector contacts | 6 |
| connector center pin Ø | 0.8 mm |
| connector plating | Gold |
| connector coding | A |
| connector length | 24.0 mm |
| mounting style | flange mount |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 17.30g |
| Prop65 | Nickel |
