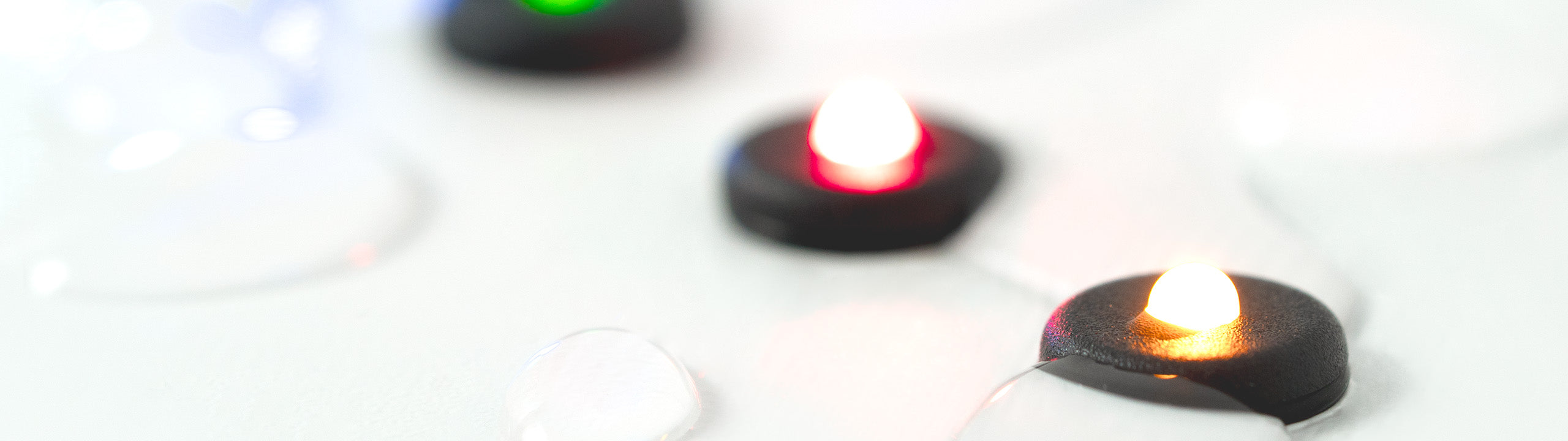

IP68 sealed panel mount LED indicators provide a compact visual status indication solution for equipment, enclosures, and control panels where protection from dust and water ingress is required. The assemblies feature an IP68 rated sealing design with M8 x 1.0 and M10 x 1.0 threaded bodies for panel installation, making them well suited for applications exposed to moisture, washdown conditions, airborne contaminants, or outdoor environments. When properly installed, the sealing system helps protect the indicator from environmental exposure while maintaining a simple panel-mounted interface.
The series is supplied with pre-attached wire leads, eliminating the need to terminate small indicator terminals during assembly. Pre-attached cable leads simplify installation by reducing wiring complexity and assembly time. The assemblies utilize 26 AWG UL 11028 lightweight mPPE hook-up wire with 5 mm tinned ends and are offered in 150 mm and 305 mm lead lengths. Multiple LED color options are available. An integrated circuit (IC) conditions the input power to help maintain consistent LED performance across the 5-30 V input range. This design supports integration into a wide range of low-voltage equipment and control systems, while the included mounting hardware helps simplify installation.
Key Features |
Applications |
|
|
FAQs
What is the purpose of the integrated circuit (IC)?
The integrated circuit (IC) conditions the input power supplied to the LED, allowing the indicator to operate more consistently across the rated 5-30 V input range. This helps maintain stable performance and reduces the need for additional external components in the application.
How do pre-terminated wire leads simplify installation?
Pre-terminated wire leads reduce assembly time by eliminating the need to terminate the LED indicator during installation. Also, pre-attached leads can simplify panel wiring and help streamline integration into equipment and control systems.
What does IP68 mean?
IP68 is an ingress protection rating where the "6" indicates complete protection against dust ingress and the "8" indicates protection against water ingress during continuous immersion. Unlike IP67, which is tested under a standardized immersion condition, the exact depth and duration associated with an IP68 rating can vary by manufacturer and product design. When properly installed, these panel mount LED indicators are rated for immersion in fresh water up to 1.5 meters deep for 30 minutes, helping protect against moisture, dust, and other environmental contaminants.
What is the advantage of tinned wire ends?
Tinned ends can make termination easier in some assembly processes and help prepare the leads for direct connection into terminals or solder points.
Why use a panel mount LED instead of a display?
Panel mount LED indicators provide a simple and cost-effective method of communicating equipment status, power presence, fault conditions, or operational states without the complexity, space requirements, or power consumption associated with a display.
Do I need an external resistor?
No. These panel mount LED indicators are designed to operate across a 5-30 V input range without requiring an external resistor. The integrated circuit (IC) conditions the input power internally, allowing the indicator to be connected directly to compatible power sources within the rated voltage range and simplifying system design.
Does the input voltage affect brightness?
Brightness remains relatively consistent throughout the rated 5-30 V input range. The integrated circuit (IC) conditions the input power and helps regulate the current supplied to the LED, minimizing changes in brightness during normal operation.
