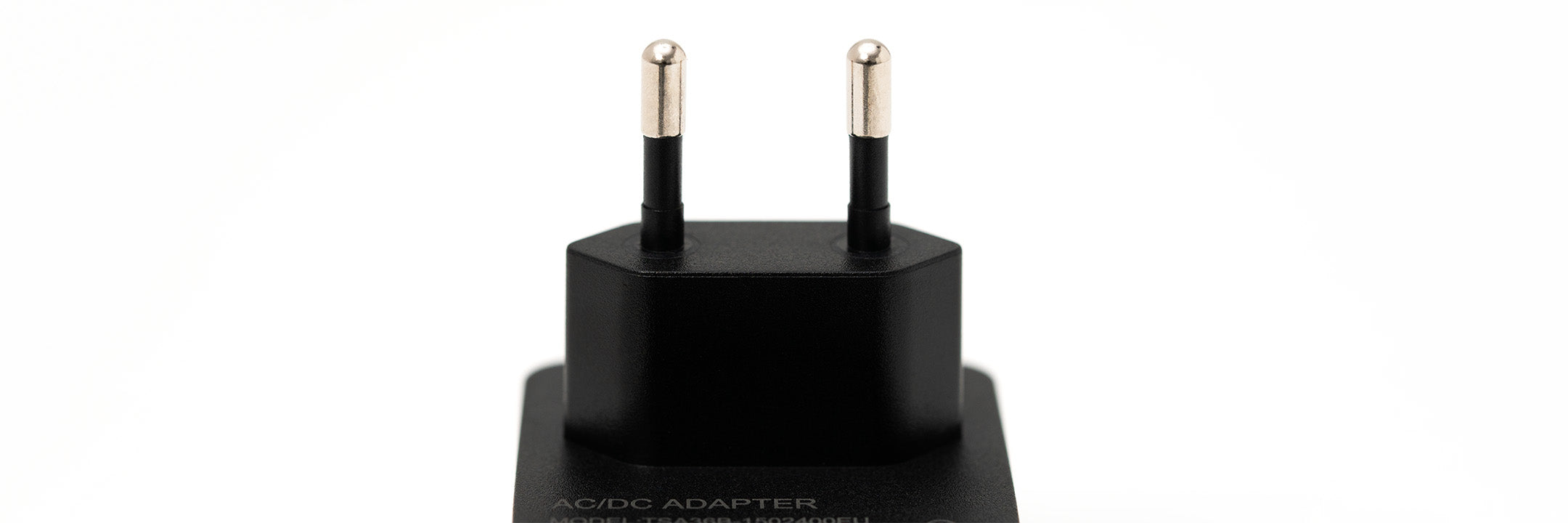

Compact wall plug power supplies designed for the EU market, delivering reliable performance while meeting the Level VI DOE efficiency standards. Utilizing the CEE 7/16 wall plug, also known as the Type C Europlug, these solutions support widespread compatibility across the European Union and other global regions using the same plug standard.
Available in twelve voltage and current configurations, these power supplies deliver output ranges from 5 to 36 W, supporting a wide range of consumer and industrial applications. Offered with 2.1 mm or 2.5 mm center pin dc plugs and a 1.5 m cable length, they support common dc connections.
The following table outlines the available wattage, voltage, and current configurations offered within this EU wall plug power supply series, along with applicable certifications. These Level VI efficient solutions range from compact 5 W adapters to higher output 36 W configurations, supporting a variety of consumer, industrial, and communication applications.
| Configuration | Certifications | |||
|---|---|---|---|---|
| Part Number(s) | Wattage | Voltage | Current | |
| SEE ALL | 5 W | 5 V | 1 A | CE, TUV/GS |
| SEE ALL | 6 W | 12 V | 0.5 A | CE, TUV/GS |
| SEE ALL | 10 W | 5 V | 2 A | CE, TUV/GS |
| SEE ALL | 12 W | 12 V | 1 A | CE, TUV/GS |
| SEE ALL | 15 W | 5 V | 3 A | CE |
| SEE ALL | 18 W | 12 V | 1.5 A | CE |
| SEE ALL | 18 W | 9 V | 2 A | CE |
| SEE ALL | 24 W | 24 V | 1 A | CE |
| SEE ALL | 24 W | 12 V | 2 A | CE |
| SEE ALL | 36 W | 24 V | 1.5 A | CE |
| SEE ALL | 36 W | 15 V | 2.4 A | CE |
| SEE ALL | 36 W | 12 V | 3 A | CE |
Key Features |
Applications |
|
|
FAQs
What is EMC and EMI testing?
EMI, or electromagnetic interference, relates to measuring the emissions a device produces that may affect nearby electronics, typically evaluated under EN 55032. EMC, or electromagnetic compatibility, ensures a device operates correctly in its environment without interference, validated through standards such as EN 55024 and EN 55035.
What are CE and TUV/GS certifications?
CE certification confirms compliance with European Union safety, health, and environmental requirements, allowing products to be sold within the European Economic Area. TUV/GS is a third-party German certification that verifies additional safety and quality standards beyond CE requirements.
Where are CEE 7/16 Type C Europlug used?
These power supplies use the CEE 7/16 Type C Europlug, commonly used across most of Europe, excluding the United Kingdom, and widely adopted in regions including parts of South America, Africa, Asia, and Oceania.
What is the polarity of the dc connector?
These power supplies use center positive polarity, where the center pin is positive and the outer barrel is negative.
