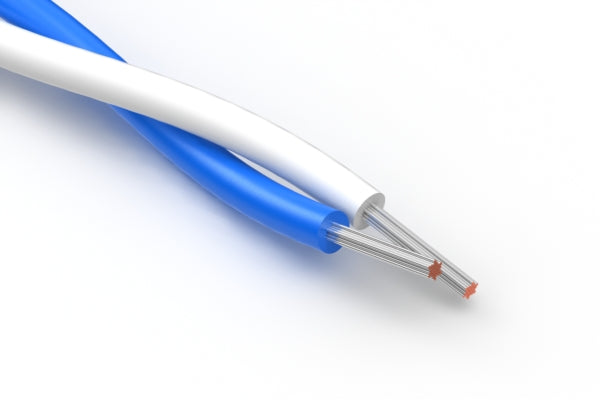

Wire, 2C, 1 twisted pair, TS, 26 AWG, UL1640, 30V, 80C, 0.95 mm, FT2, cellular PE, white/blue
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 2 |
| wire outer Ø | 0.9 mm |
| AWG | 26 |
| shield | unshielded |
| bend radius | 3.8 mm |
| insulator color | white + blue |
| cable length | 1000 mm |
| operating temperature | -10~80 °C |
| voltage rating | 30 V |
| UL style | 1640 |
| HTS code | 8544.49.2000 |
| unit weight | 5.49g |
