Description
Description

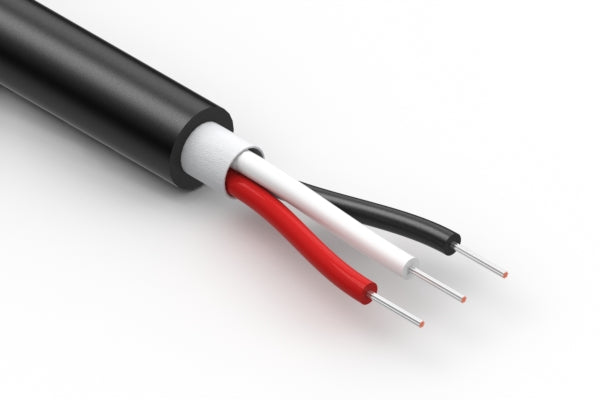

Wire, 3C TS, 32 AWG, UL21765, 300V, 105C, 60C oil, UV, 4 mm, VW-1, TPU
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 4.0 mm |
| AWG | 32 |
| cable style | round |
| shield | unshielded |
| jacket material | TPU |
| bend radius | 24 mm |
| color | black |
| insulator color | red + black + white |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | 21765 |
| HTS code | 8544.49.2000 |
| Prop65 | Vinyl Chloride |
