Description
Description

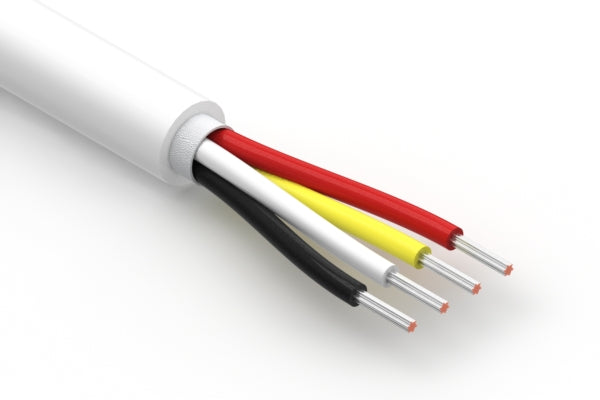

Wire, 4C TS, 26 AWG, 150V, 70C, 3.4 mm, TPU, 75A, white, WBL
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 4 |
| wire outer Ø | 3.4 mm |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| jacket material | TPU |
| bend radius | 13.6 mm |
| color | white |
| insulator color | white + black + red + yellow |
| operating temperature | -40~70 °C |
| voltage rating | 150 V |
| UL style | no |
| features | bio-compatible |
| HTS code | 8544.49.3080 |
