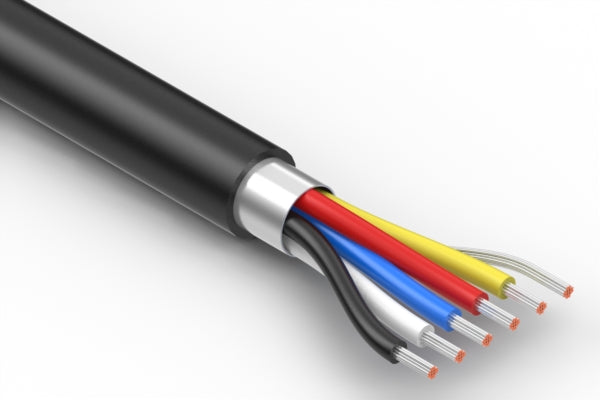

Wire, 5C TS, 30 AWG, 21509, 600V, 105C, 3.9 mm, shielded, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 5 |
| wire outer Ø | 3.9 mm |
| AWG | 30 |
| cable style | round |
| shield | Foil |
| jacket material | mPPE |
| bend radius | 23.4 mm |
| color | black |
| insulator color | white + black + red + yellow + blue |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | 21509 |
| HTS code | 8544.49.3080 |
| unit weight | 163.40g |
