Description
Description

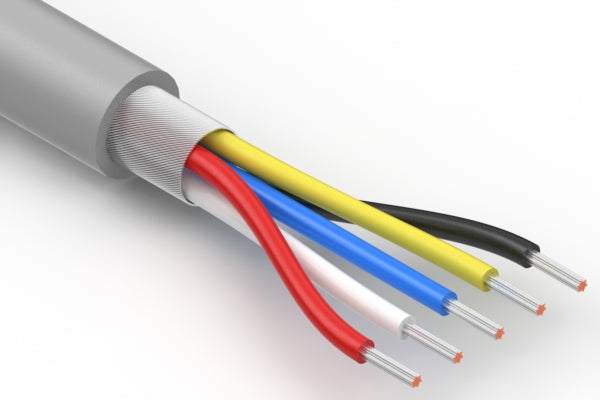

Wire, 5C TS, 26 AWG, 150V, 70C, 3.9 mm, shielded, TPU, 75A, gray, WBL
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 5 |
| wire outer Ø | 3.9 mm |
| AWG | 26 |
| cable style | round |
| shield | Spiral |
| jacket material | TPU |
| bend radius | 15.6 mm |
| color | gray |
| insulator color | white + black + red + yellow + blue |
| operating temperature | -40~70 °C |
| voltage rating | 150 V |
| HTS code | 8544.49.3080 |
| unit weight | 18.95g |
PDF Spec
Compliance
