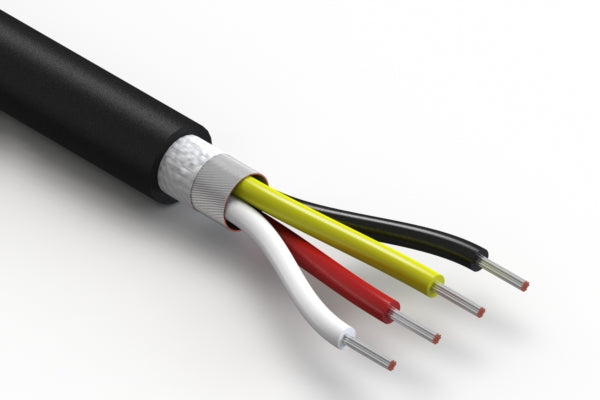

Wire, 4C TS, 20 AWG, UL20549, 300V, 80C, 6.2 mm, shielded, VW-1, TPU
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 4 |
| wire outer Ø | 6.2 mm |
| AWG | 20 |
| cable style | round |
| shield | spiral |
| jacket material | TPU |
| bend radius | 37.2 mm |
| color | black |
| insulator color | white + black + red + yellow |
| operating temperature | -40~80 °C |
| voltage rating | 300 V |
| UL style | 20549 |
| HTS code | 8544.49.3080 |
| unit weight | 0.00g |
