Price:
Sale price$0.00

Description

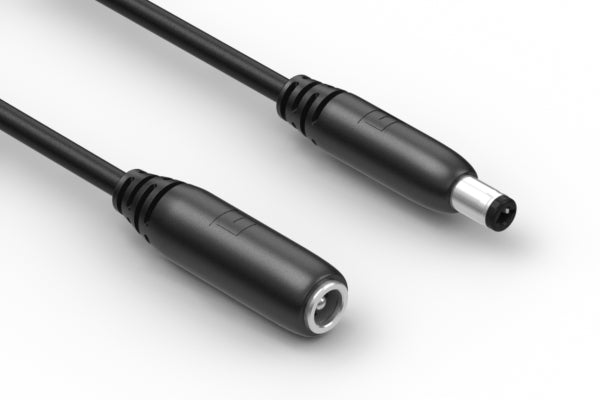

Cable, 1830 mm, 5.5x2.5 mm 50-00026 dc plug to 5.5x2.5 mm 50-00027 dc jack, 24 AWG, 30-00692 wire

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
connector plating nickel
mounting style cable mount
connector color black
wire outer Ø 4.0 mm
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 24 mm
color black
insulator color black + red
cable length 915 mm
voltage rating 48 V
current rating 4.5 A
UL style 2464
connector 1 50-00026
connector 2 50-00027
wire part # 30-00692
HTS code 8544.42.9090
unit weight 55.00g
Prop65 Vinyl Chloride
