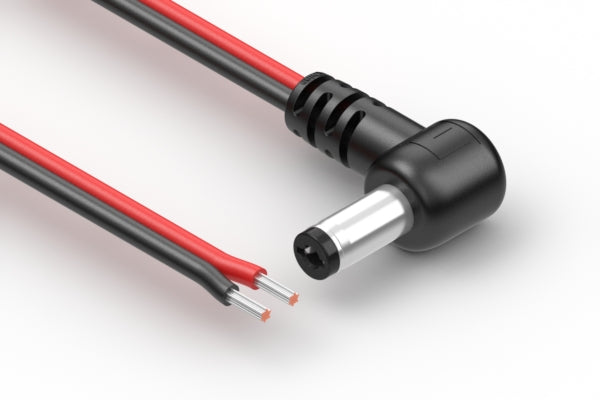

Cable, 3050 mm, 5.5x2.1x12 mm 90° 50-00706 dc plug to 5 mm tinned, 16 AWG, UL21516, 30-03163 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| wire outer Ø | 4.8 mm |
| AWG | 16 |
| cable style | flat |
| shield | unshielded |
| bend radius | 14.4 mm |
| color | red + black |
| cable length | 3050 mm |
| operating temperature | -40~105 °C |
| voltage rating | 48 V |
| current rating | 8.5 A |
| UL style | 21516 |
| connector 1 | 50-00706 |
| connector 2 | stripped and tinned |
| wire part # | 30-03164 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
