Price:
Sale price$0.00

Description

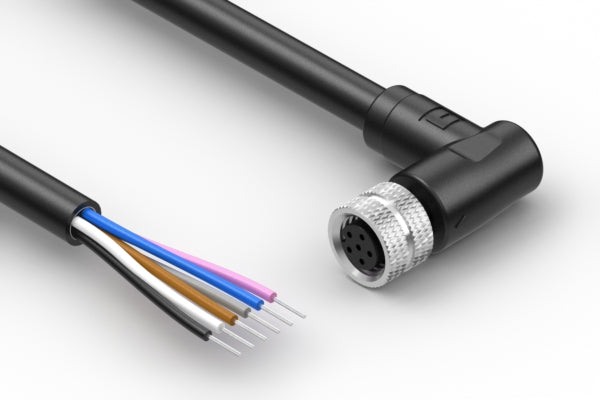

Cable, 5000 mm, 0.7 mm 6C 90° 50-01034 M8 socket to 5mm tinned, 26 AWG, 30-02981 wire

connector style jack → tinned
connector orientation 90°
# of conductors 6
# of connector contacts 6
connector center pin Ø 0.7 mm
connector plating gold
connector coding A
mounting style cable mount
connector color black
wire outer Ø 5.6 mm
AWG 26
cable style round
shield unshielded
jacket material PVC
bend radius 33.6 mm
color black
insulator color brown + white + blue + black + gray + pink
cable length 5000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 1.0 A
cycle rating 1000
UL style 20387
features thread lock
connector 1 50-01034
connector 2 stripped and tinned
wire part # 30-02981
HTS code 8544.42.9090
Prop65 Vinyl Chloride
