Price:
Sale price$0.00

Description

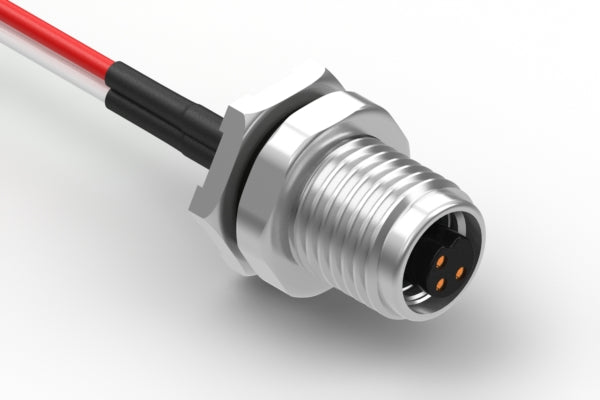

Cable, 305 mm, M5 3C socket panel mount 54-00104 to blunt cut, 26 AWG, UL 11028 hook-up wire

connector type M series
connector style jack → blunt cut
connector orientation 180°
M type M5
# of conductors 3
# of connector contacts 3
connector center pin Ø 0.5 mm
connector plating gold
connector coding A
connector length 13.7 mm
mounting style panel mount
connector color black
AWG 26
cable style round
shield unshielded
insulator color red + green + white
cable length 305 mm
operating temperature -40~85 °C
voltage rating 60 V
current rating 1.0 A
cycle rating 500
UL style 11028
features panel mount
connector 1 54-00104
connector 2 blunt cut
HTS code 8544.42.9090
Prop65 Nickel
