Description
Description

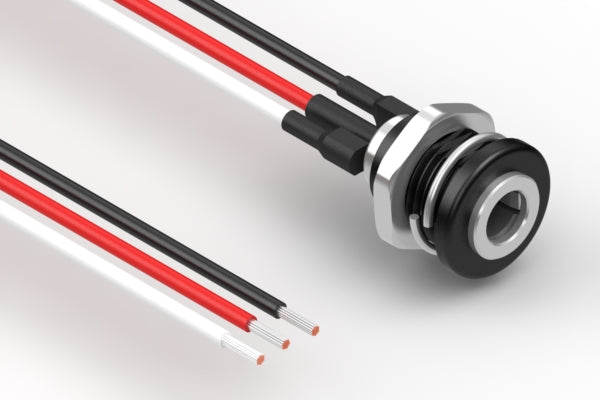

Cable, 305 mm, 5.5x2.5 mm 54-00310 to stripped and tinned, 18 AWG, UL1332 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → tinned |
| # of conductors | 3 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 22.0 mm |
| connector color | black |
| wire outer Ø | 1.8 mm |
| AWG | 18 |
| cable style | round |
| shield | unshielded |
| bend radius | 10.8 mm |
| insulator color | white + black + red |
| cable length | 305 mm |
| operating temperature | -50~200 °C |
| voltage rating | 48 V |
| current rating | 8.0 A |
| cycle rating | 5000 |
| UL style | 1332 |
| features | panel mount |
| connector 1 | 54-00310 |
| wire part # | 30-02541 |
| HTS code | 8544.42.9090 |
| unit weight | 20.60g |
| Prop65 | Nickel |
