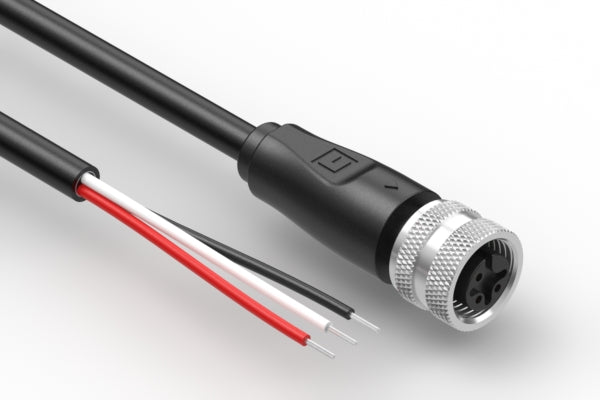

Cable, 5000 mm, 1.0 mm 3C 50-00951 M12 socket to 5 mm tinned, 22 AWG, 30-01650 wire

connector type M series
connector style jack → tinned
connector orientation 180°
M type M12
# of conductors 3
# of connector contacts 3
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
locking style thread lock
mounting style cable mount
connector color black
AWG 22
cable style round
shield unshielded
jacket material PVC
bend radius 31.2 mm
color black
insulator color white + black + red
cable length 5000 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-00951
wire part # 30-01650
HTS code 8544.42.9090
Prop65 Vinyl Chloride
