Description
Description

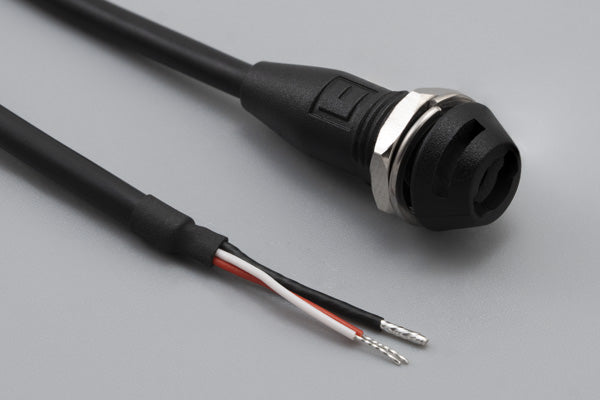

Cable, 305 mm, 3.5 mm 3C 50-00904 twist lock panel mount audio jack to 5 mm tinned, 28 AWG
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 3 |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 20.7 mm |
| locking style | twist lock |
| connector color | black |
| wire outer Ø | 3.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | PVC |
| bend radius | 22.8 mm |
| color | black |
| insulator color | red + white |
| cable length | 305 mm |
| operating temperature | -25~70 °C |
| connector 1 | 50-00904 |
| connector 2 | stripped and tinned |
| wire part # | 30-00177 |
| HTS code | 8544.42.9090 |
| unit weight | 13.33g |
| Prop65 | Nickel |
