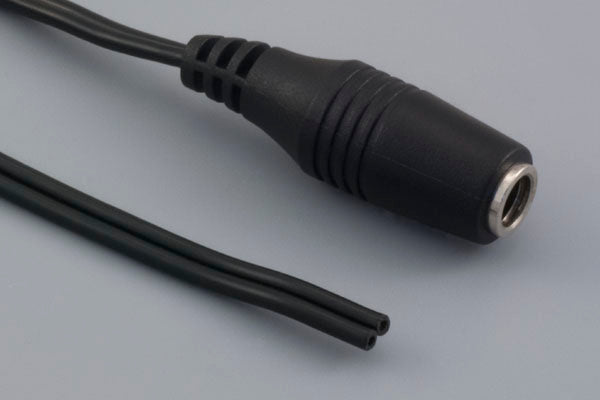

Cable, 550 mm, 5.5x2.1 dc jack 50-00127 to blunt cut, 18 AWG, UL2468, 30-00007 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → blunt cut |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| wire outer Ø | 4.4 mm |
| AWG | 18 |
| cable style | flat |
| bend radius | 13.2 mm |
| color | black |
| operating temperature | -25~80 °C |
| voltage rating | 48 V |
| current rating | 11.25 A |
| UL style | 2468 |
| connector 1 | 50-00127 |
| connector 2 | blunt cut |
| wire part # | 30-00007 |
| HTS code | 8544.42.9090 |
| unit weight | 19.72g |
| Prop65 | Vinyl Chloride |
