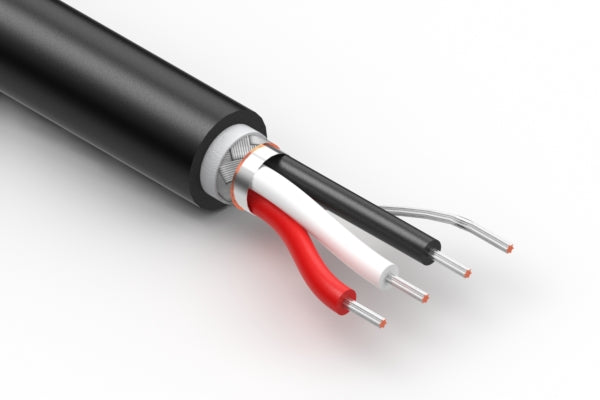

Wire, 3C TS, 22 AWG, UL21765, 300V, 105C, 60C oil, UV, 5.7 mm, shielded, VW-1, TPU
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 5.7 mm |
| AWG | 22 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPU |
| bend radius | 34.2 mm |
| color | black |
| insulator color | red + black + white |
| cable length | 1000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | 21765 |
| HTS code | 8544.49.2000 |
| unit weight | 52.94g |
| Prop65 | Vinyl Chloride |
