Price:
Sale price$0.00

Description

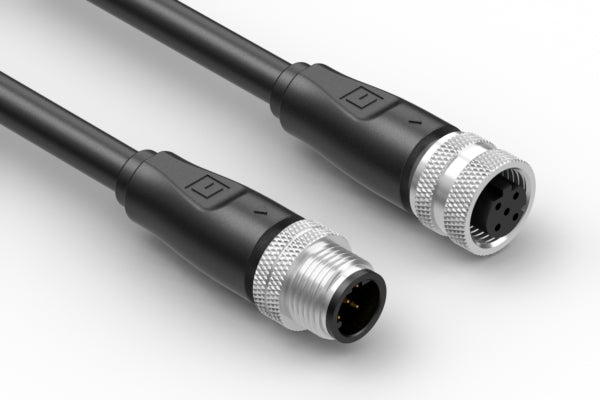

Cable, 500 mm, 1.0 mm 5C 50-01032 M12 socket D-code to 50-01033 M12 plug D-code, 22 AWG, 30-01586

connector type M series
connector style jack → plug
connector orientation 180°
M type M12
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding D
mounting style cable mount
connector color black
wire outer Ø 6.5 mm
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 39 mm
color black
insulator color red, black, white, yellow, blue
cable length 500 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 4.0 A
cycle rating 500
UL style 20387
features thread lock
connector 1 50-01032
connector 2 50-01033
wire part # 30-01586
HTS code 8544.42.9090
Prop65 Vinyl Chloride
