Description

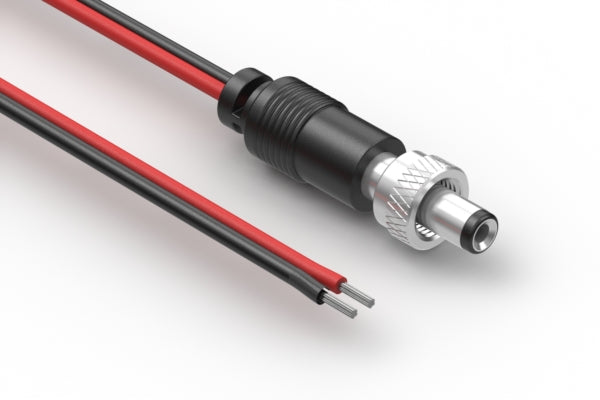

Cable, 4000 mm, 5.5x2.5x7.5mm 50-00011 locking dc plug to 5mm tinned, 18 AWG, UL2468, 30-00415, r&b

connector type dc
connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
wire outer Ø 4.4 mm
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color red + black
cable length 4000 mm
operating temperature 80 °C
voltage rating 48 V
current rating 6.5 A
UL style 2468
features thread lock
connector 1 50-00011
connector 2 stripped and tinned
wire part # 30-00415
HTS code 8544.42.9090
unit weight 117.25g
Prop65 Vinyl Chloride
