Description
Description

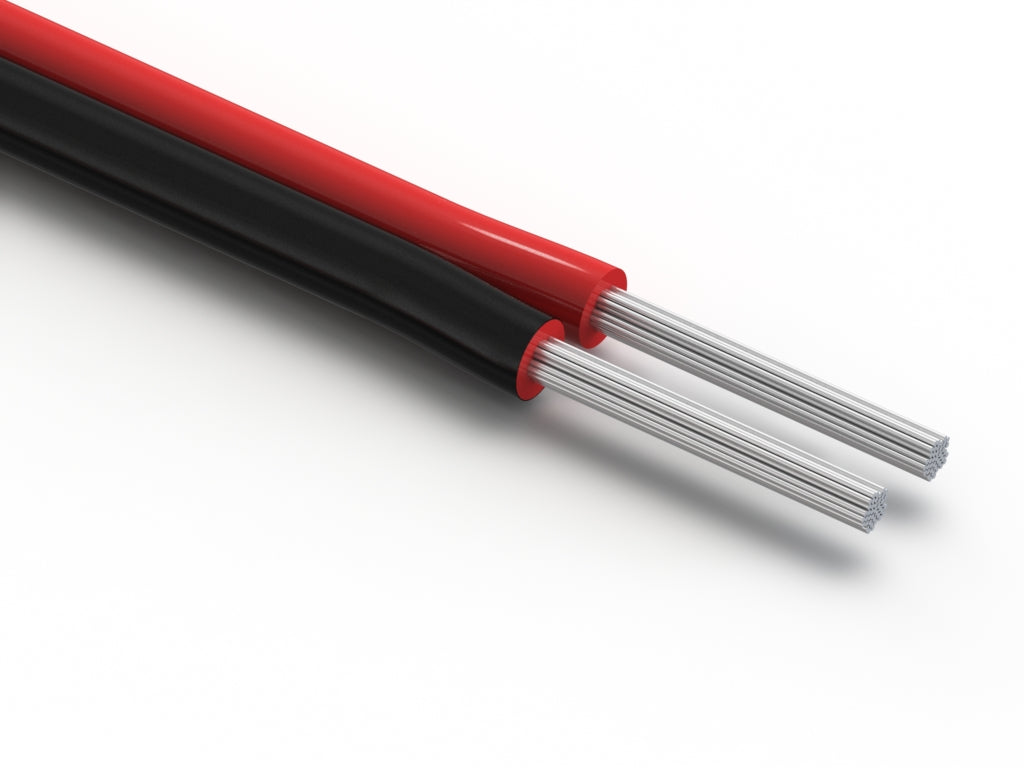

Wire, 2C TS, 18 AWG, UL2468, 300V, 80°C, 4.4 mm, VW-1, PVC, red and black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 2 |
| wire outer Ø | 4.4 mm |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 13.2 mm |
| color | red + black |
| insulator color | black + red |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2468 |
| HTS code | 8544.49.3080 |
| unit weight | 26.23g |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
