Description

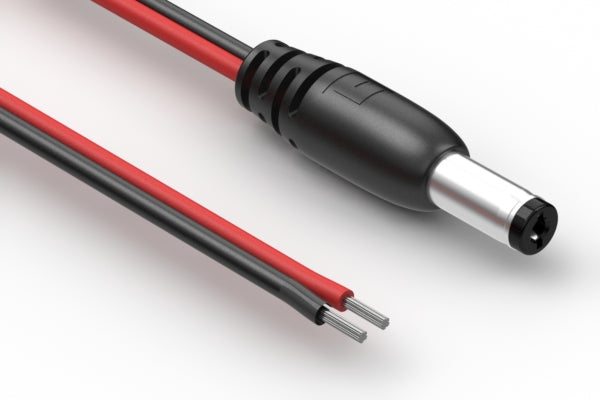

Cable, 3000 mm, 5.5x2.1x12 mm 50-00024 dc plug to 10 mm tinned, 18 AWG, 30-00415 R-B wire

connector type dc
connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
wire outer Ø 4.4 mm
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color red + black
cable length 3000 mm
operating temperature 80 °C
voltage rating 48 V
current rating 8.5 A
UL style 2468
connector 1 50-00024
connector 2 stripped and tinned
wire part # 30-00415
HTS code 8544.42.9090
unit weight 86.20g
Prop65 Vinyl Chloride
