Description
Description

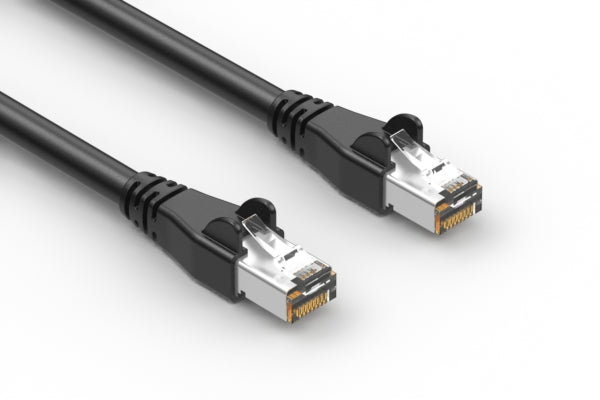

Cable, 1500 mm, 8P8C 50-00995 RJ45 plug to same, CAT6a patch cable, 24 AWG, 30-01713 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → plug |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector plating | gold |
| mounting style | cable mount |
| wire outer Ø | 7.1 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 42.6 mm |
| color | black |
| cable length | 1500 mm |
| operating temperature | -20~105 °C |
| voltage rating | 48 V |
| current rating | 0.5 A |
| connector 1 | 50-00995 |
| connector 2 | 50-00995 |
| wire part # | 30-01713 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
