Description
Description

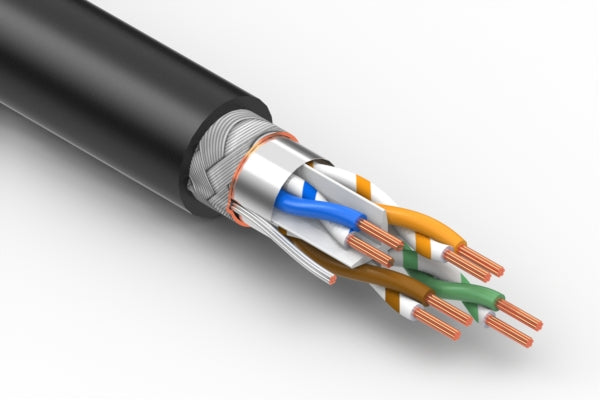

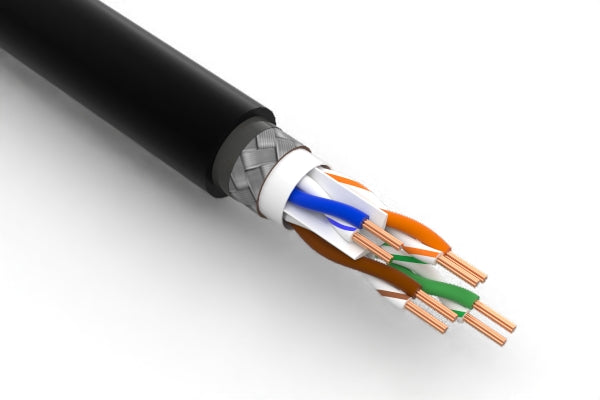

Wire, 4PR BC, 24 AWG, CAT6a SF/UTP, UL20387, 300V, 105C, 60C oil, UV, 7.2 mm, shielded, VW-1, PVC
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 8 |
| wire outer Ø | 7.2 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 43.2 mm |
| color | black |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | 20387 |
| HTS code | 8544.49.3080 |
| unit weight | 74.51g |
| Prop65 | Vinyl Chloride |
