Price:
Sale price$0.00

Description

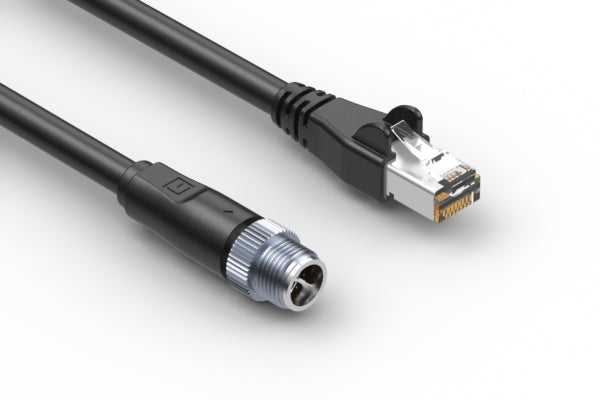

Cable, 5000 mm, 8 pin 50-00993 M12 X-code plug to 8P8C 50-00995 RJ45 plug, CAT6a, 26 AWG, 30-01714

connector type M series → RJ45
connector style plug → plug
connector orientation 180°
# of conductors 8
# of connector contacts 8
connector plating gold
connector coding X
mounting style cable mount
AWG 26
cable style round
shield braid + foil
jacket material PVC
bend radius 43.2 mm
color black
cable length 5000 mm
operating temperature -20~105 °C
voltage rating 48 V
current rating 0.5 A
features thread lock
connector 1 50-00993
connector 2 50-00995
wire part # 30-01714
HTS code 8544.42.9090
Prop65 Vinyl Chloride
