Description
Description

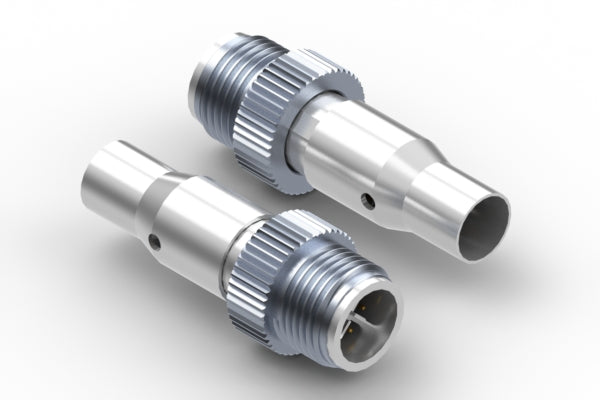

Connector, 8 pin M12 X-code plug, 12xL38.6mm, gold plated, molding style, solder cup, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | plug |
| connector orientation | 180° |
| M type | M12 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector outer Ø | 14.5 mm |
| connector plating | gold |
| connector coding | X |
| connector length | 38.6 mm |
| mounting style | molding |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 0.5 A |
| cycle rating | 500 |
| Prop65 | Nickel |
PDF Spec
3D Model
Compliance
