Description
Description

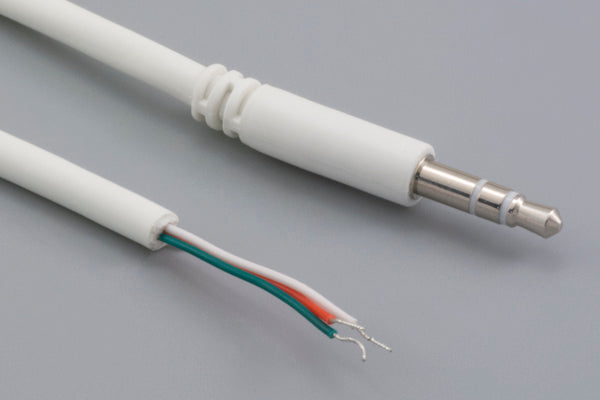

Cable, 1830 mm, 3.5 mm 50-00402 slim stereo plug to 5 mm tinned, 28 AWG, 30-00180, shielded, white
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 3 |
| connector outer Ø | 3.5 mm |
| wire outer Ø | 3.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | PVC |
| bend radius | 22.8 mm |
| color | white |
| insulator color | white + red + green |
| cable length | 1830 mm |
| operating temperature | 80 °C |
| connector 1 | 50-00402 |
| connector 2 | stripped and tinned |
| wire part # | 30-00180 |
| HTS code | 8544.42.9090 |
| unit weight | 46.10g |
| Prop65 | Vinyl Chloride |
