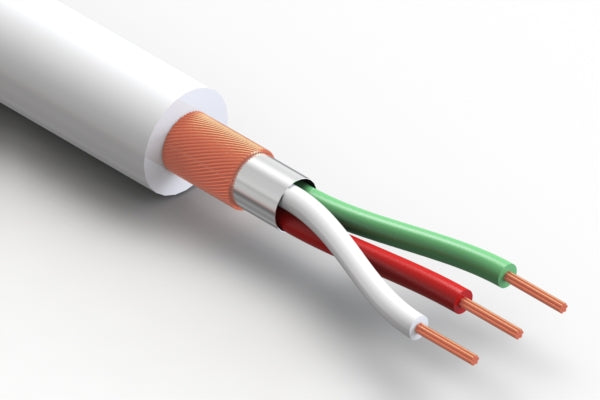

Wire, 3C BC, 28 AWG, 300V, 80C, 3.8 mm, spiral + foil, PVC, white
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 3 |
| wire outer Ø | 3.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | PVC |
| bend radius | 22.8 mm |
| color | white |
| insulator color | white + red + green |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| HTS code | 8544.49.3080 |
| unit weight | 26.80g |
| Prop65 | Vinyl Chloride |
