Description

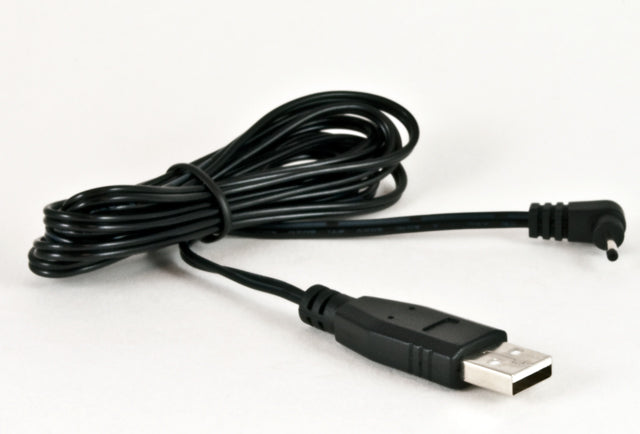

Cable, 1830 mm, USB A plug to 2.35x0.7x9.5mm 90° 50-00030 plug, center neg, 22 AWG, UL2468, 30-00008

connector type dc → usb
connector style plug → plug
connector orientation 90°
# of conductors 2
# of connector contacts 2
connector center pin Ø 0.7 mm
connector outer Ø 2.35 mm
wire outer Ø 3.6 mm
AWG 22
cable style flat
shield unshielded
jacket material PVC
bend radius 10.8 mm
color black
cable length 1830 mm
voltage rating 5 V
current rating 1.0 A
UL style 2468
connector 1 50-00425
connector 2 50-00030
wire part # 30-00008
HTS code 8544.42.9090
unit weight 43.33g
Prop65 Vinyl Chloride
