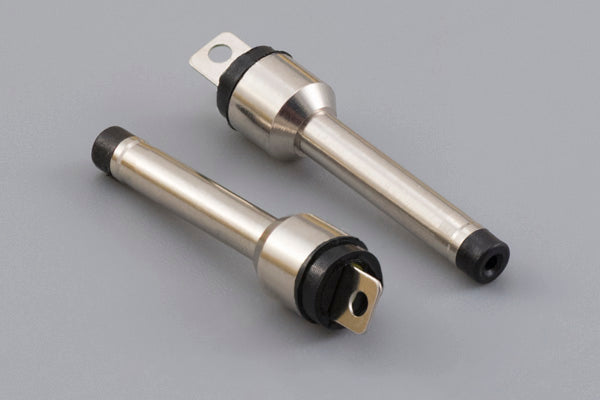

Connector, dc plug, 2.35x0.7xL20.8 mm, EIAJ-1, molding style, spring contacts
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug |
| # of connector contacts | 2 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 2.35 mm |
| connector plating | nickel |
| connector length | 20.8 mm |
| mounting style | cable mount |
| operating temperature | -25~70 °C |
| voltage rating | 48 V |
| current rating | 4.0 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4010 |
| unit weight | 0.52g |
| Prop65 | Nickel |
