Description
Description

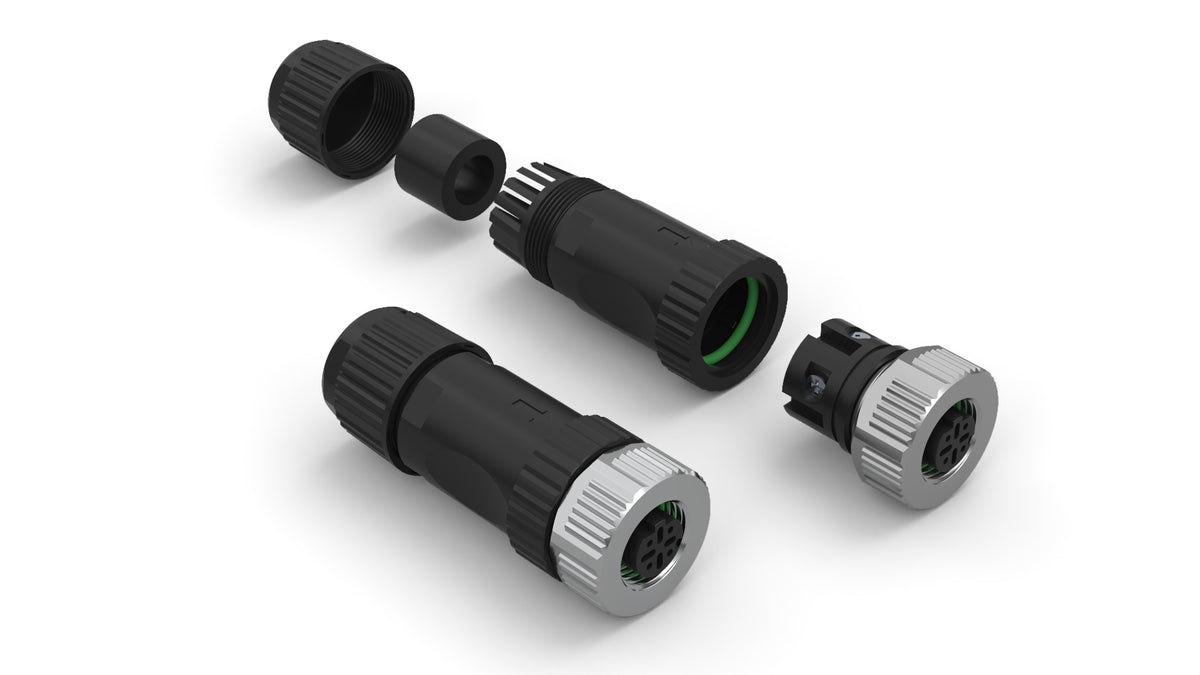

Connector, M12 D-code socket, 4 pin, 12xL54 mm, gold plated, assembly style, screw terminal, IP67, metal thread
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack |
| M type | M12 |
| # of connector contacts | 4 |
| connector coding | A |
| insulator color | black |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | assembly type |
| HTS code | 8536.69.4020 |
| Prop65 | Nickel |
PDF Spec
3D Model
Compliance
