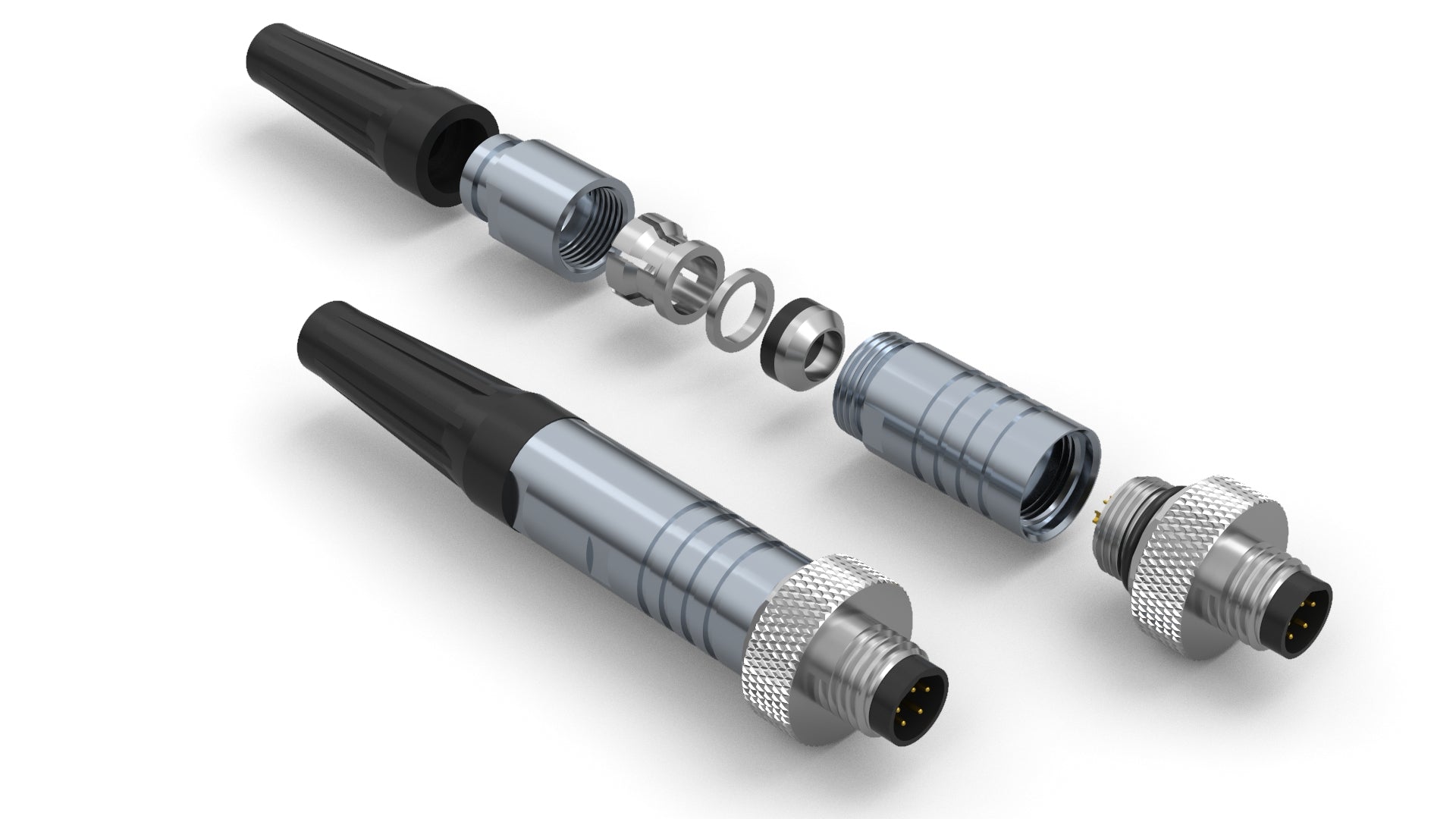

Connector, M8 A-code plug, 5 pin, 8xL43 mm, assembly style, solder cup, gold plated, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| M type | M8 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | B |
| connector length | 43.0 mm |
| mounting style | cable mount |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| features | assembly type |
| HTS code | 8536.69.4020 |
| Prop65 | Nickel |
