Description
Description

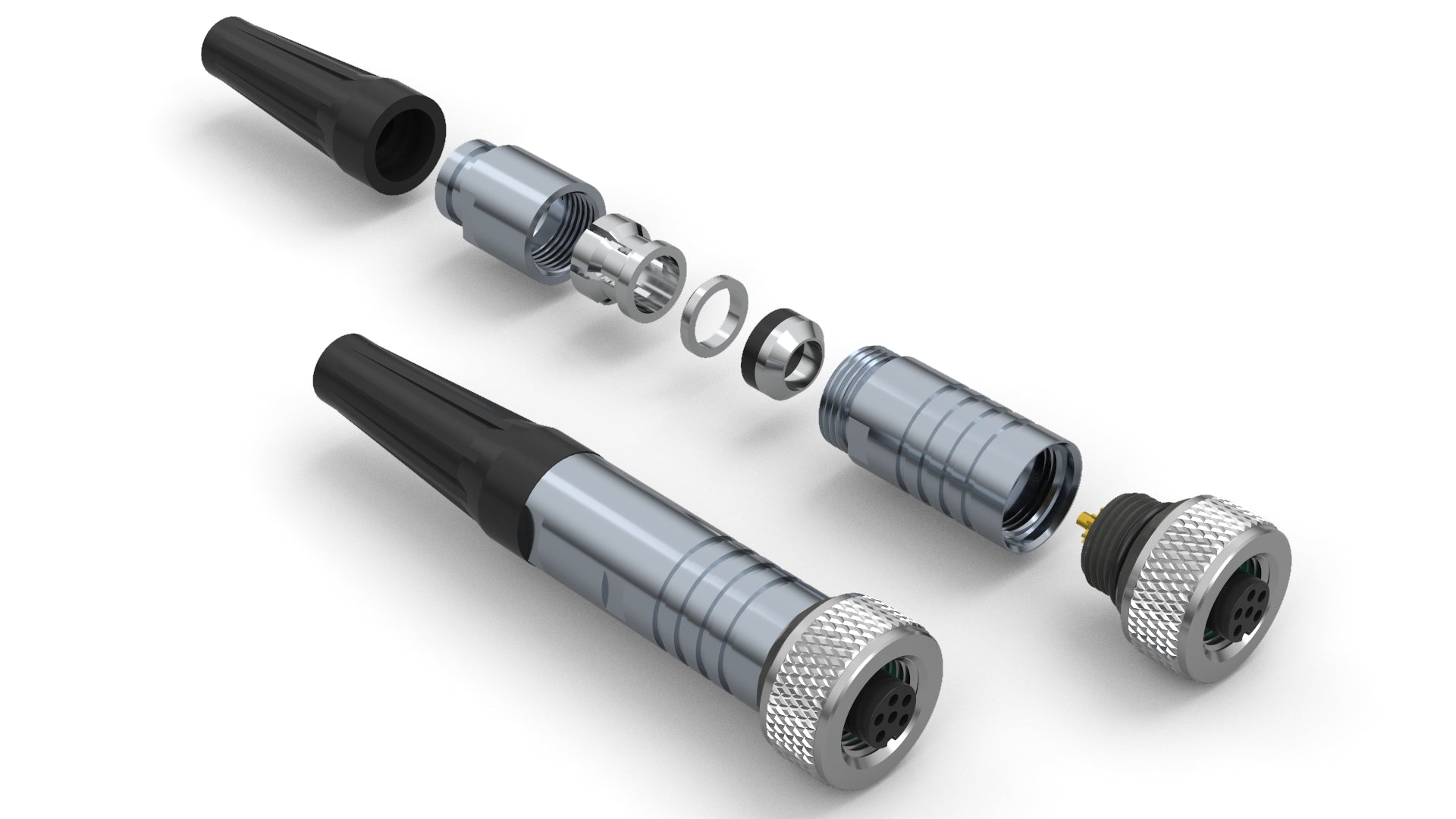

Connector, M8 A-code socket, 6 pin, 8xL40 mm, assembly style, solder cup, gold plated, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack |
| M type | M8 |
| # of connector contacts | 6 |
| connector center pin Ø | 0.7 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 40.0 mm |
| mounting style | cable mount |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 1.0 A |
| cycle rating | 1000 |
| features | assembly type |
| HTS code | 8536.69.4020 |
| Prop65 | Nickel |
