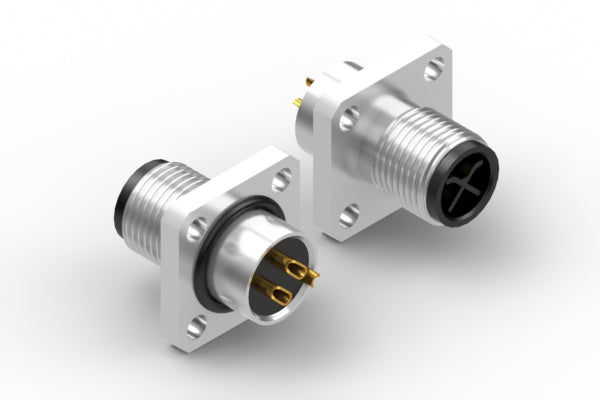

Connector, M12 S-code plug, 3 pin, 12xL25.8 mm, gold plated, flange mount, solder cup, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| connector orientation | 180° |
| M type | M12 |
| # of connector contacts | 3 |
| connector center pin Ø | 1.5 mm |
| connector outer Ø | 12.0 mm |
| connector plating | gold |
| connector coding | S |
| connector length | 25.8 mm |
| mounting style | flange mount |
| connector color | black |
| AWG | 18 |
| operating temperature | -25 ~ 80 °C |
| voltage rating | 630 V |
| current rating | 12.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 18.40g |
| Prop65 | Nickel |
