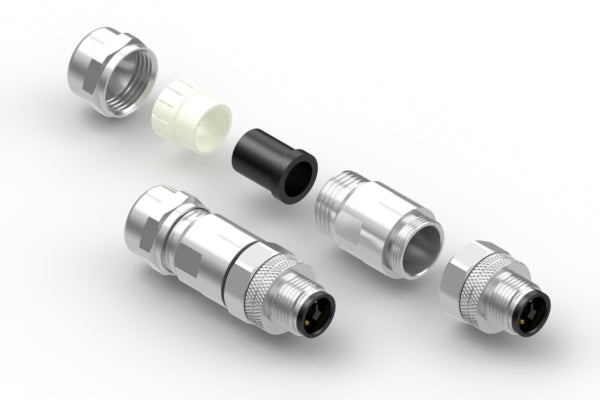

Connector, M12 T-code plug, 4 pin, 12xL51 mm, gold plated, assembly type, solder cup, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| connector orientation | 180° |
| M type | M12 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.5 mm |
| connector outer Ø | 12.0 mm |
| connector plating | gold |
| connector coding | T |
| connector length | 51.0 mm |
| mounting style | cable mount |
| connector color | black |
| AWG | 16 |
| operating temperature | -25 ~ 80 °C |
| voltage rating | 600V |
| current rating | 12.0 A |
| cycle rating | 500 |
| features | assembly type |
| HTS code | 8536.69.4020 |
| unit weight | 14.00g |
| Prop65 | Nickel |
