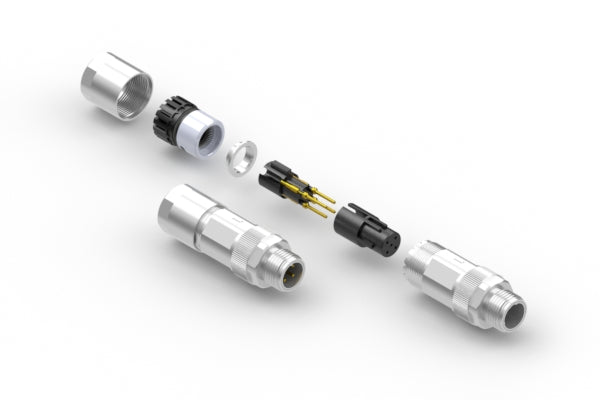

Connector, M12 D-code plug, 4 pin, 12xL49.5 mm, assembly style, crimp, gold plated, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| M type | M12 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | Gold |
| connector coding | D |
| connector length | 49.5 mm |
| mounting style | cable mount |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | assembly type |
| HTS code | 8536.69.4020 |
| unit weight | 33.43g |
| Prop65 | Nickel |
