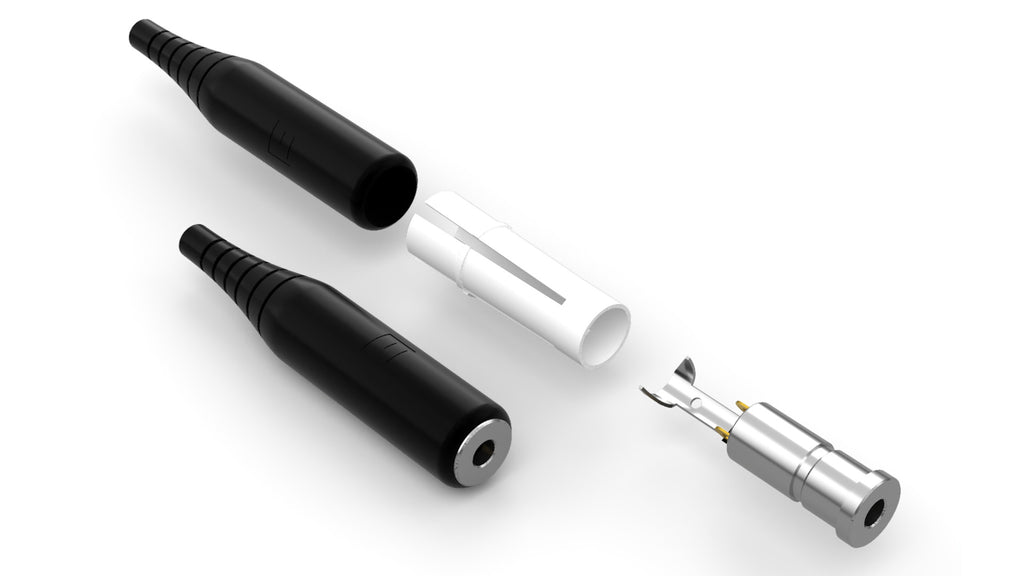

Connector, 3C audio jack, 3.5xL59.5 mm, brass, gold plated, assembly type
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | jack |
| # of connector contacts | 3 |
| connector center pin Ø | 3.5 mm |
| connector outer Ø | 9.3 mm |
| connector plating | gold |
| connector length | 59.5 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -25~90 °C |
| voltage rating | 48 V |
| cycle rating | 5000 |
| features | assembly type |
| connector 1 | 56-00047 |
| connector 2 | 56-00048 |
| HTS code | 8536.69.4020 |
| unit weight | 8.20g |
| Prop65 | Nickel |
