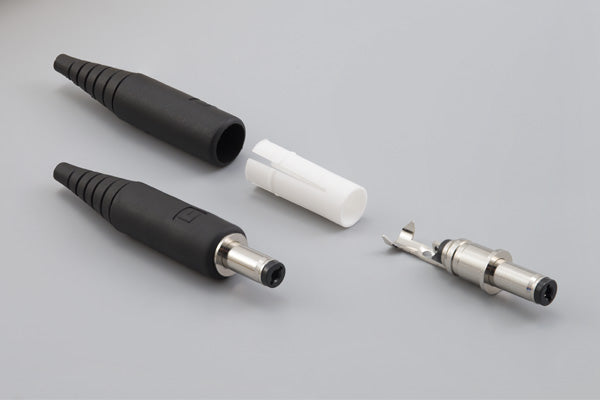

Connector, 5.5x2.5xL12 mm dc plug, nickel plated, assembly type, spring contacts
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 38.0 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -25~90 °C |
| voltage rating | 48 V |
| current rating | 6.0 A |
| cycle rating | 5000 |
| features | assembly type |
| connector 1 | 56-00002 |
| connector 2 | 56-00003 |
| HTS code | 8536.69.4010 |
| unit weight | 8.46g |
| Prop65 | Nickel |
