Description
Description

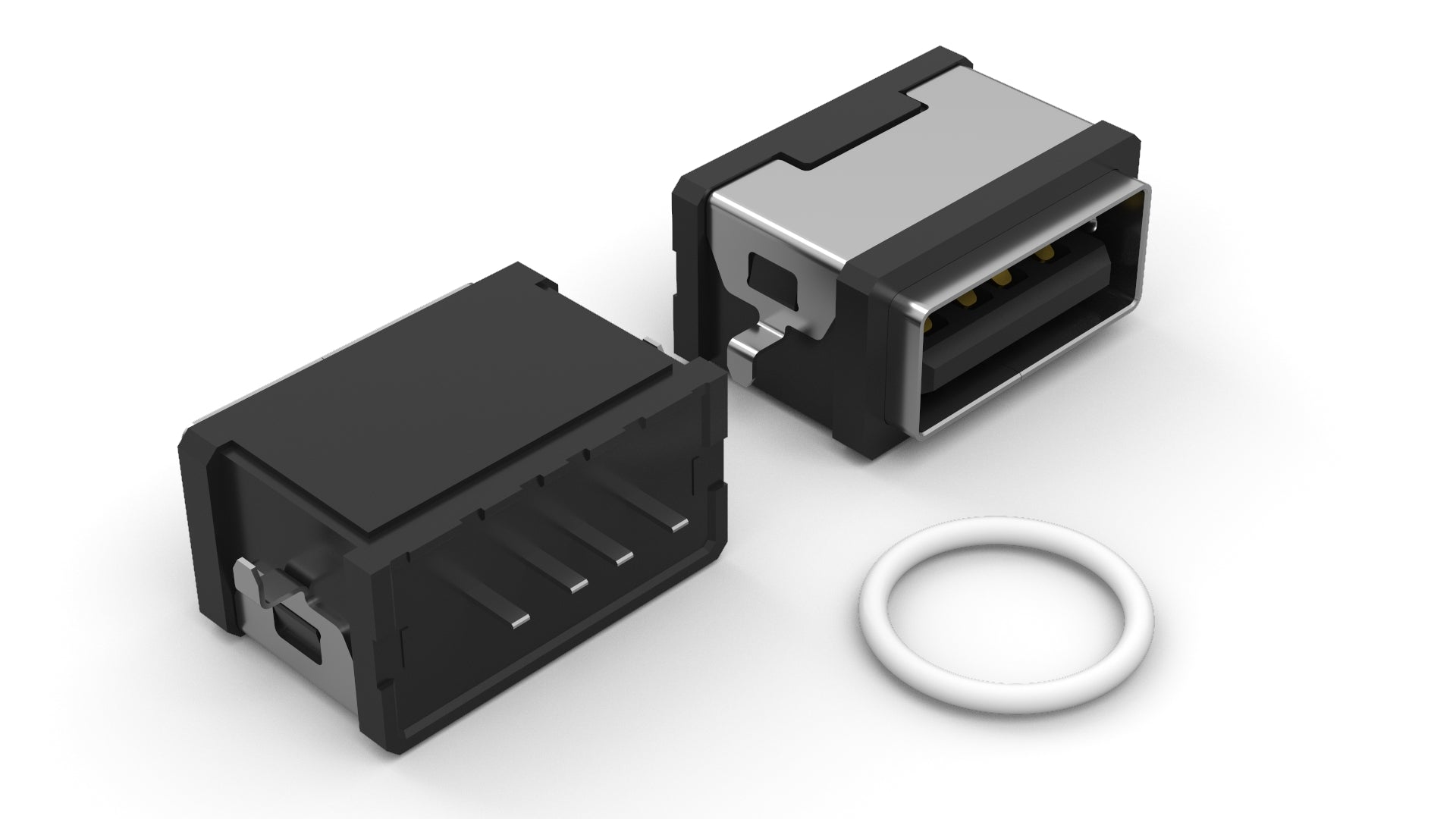

Connector, USB A 2.0 jack, thru hole with cutout, 90°, nickel plated, IPX8
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | jack |
| connector orientation | 90 degree |
| # of connector contacts | 4 |
| connector length | 13.46 mm |
| mounting style | thru hole, with cutout |
| connector color | black |
| operating temperature | -40 ~ 85 °C |
| voltage rating | 12 V |
| current rating | 5.0 A |
| cycle rating | 1500 |
| features | waterproof |
| HTS code | 8536.69.4040 |
| Prop65 | Nickel |
