Description
Description

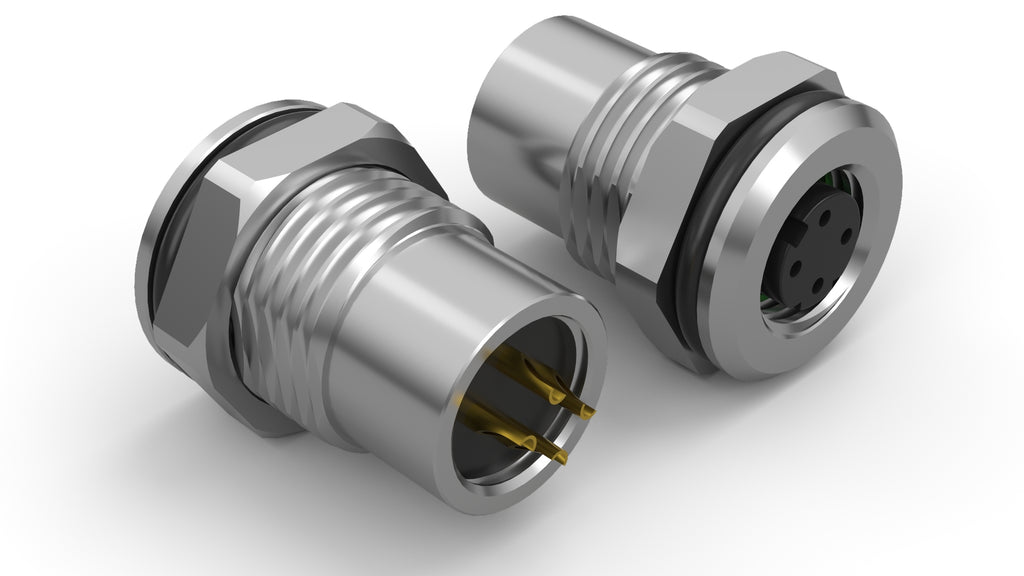

Connector, M8 D-code socket, 4 pin, 8xL20.3 mm, panel mount, solder cup, gold plated, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack |
| connector orientation | 180° |
| M type | M8 |
| # of connector contacts | 4 |
| connector center pin Ø | 0.8 mm |
| connector outer Ø | 13.0 mm |
| connector plating | gold |
| connector coding | D |
| connector length | 17.0 mm |
| mounting style | panel mount, front |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4030 |
| Prop65 | Nickel |
