Description
Description

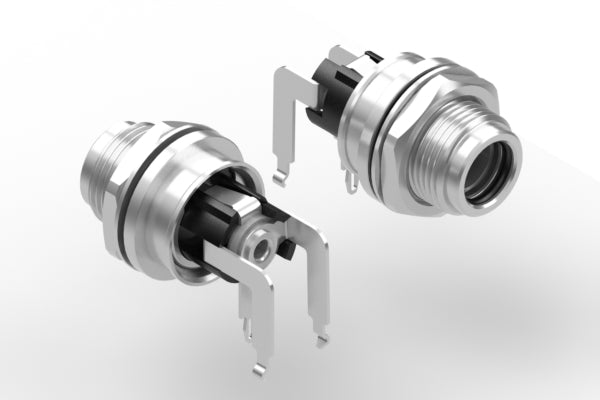

Connector, dc jack, 5.5x2.5xL26.30 mm, panel mount, thru hole, 90°, solder eyelet, nickel plated, IP68, threaded, nut and washer
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector plating | nickel |
| connector length | 26.3 mm |
| locking style | Thread lock |
| mounting style | panel mount, rear |
| connector color | black |
| cycle rating | 5000 |
| HTS code | 8536.69.4040 |
| unit weight | 11.40g |
| Prop65 | Nickel |
