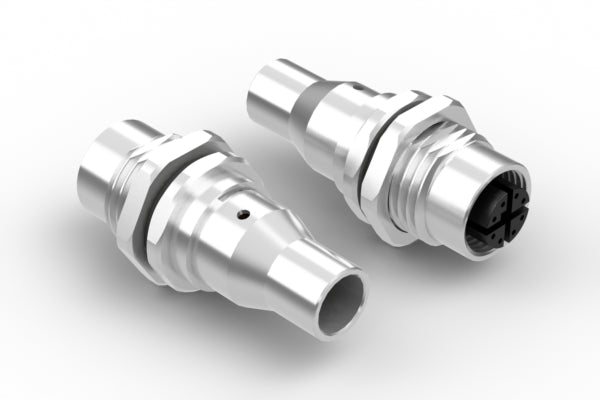

Connector, M12 X-code socket, 8 pin, 12xL40.5 mm, panel mount, solder cup, gold plated, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack |
| M type | M12 |
| # of connector contacts | 8 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | X |
| connector length | 40.5 mm |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 60 Vdc |
| current rating | 0.5 A |
| HTS code | 8536.69.4020 |
| unit weight | 26.67g |
| Prop65 | Nickel |
