Description
Description

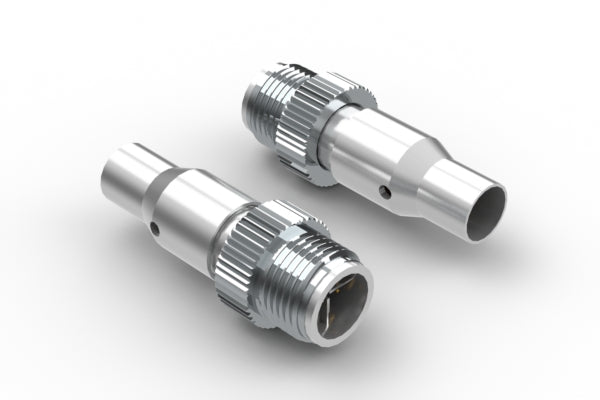

Connector, M12 X-code plug, 8 pin, 8xL38.6 mm, molding style, solder cup, gold plated, IP67, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| M type | M12 |
| # of connector contacts | 8 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | X |
| connector length | 38.6 mm |
| mounting style | cable mount |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 60 Vdc |
| current rating | 0.5 A |
| HTS code | 8536.69.4020 |
| unit weight | 25.68g |
| Prop65 | Nickel |
