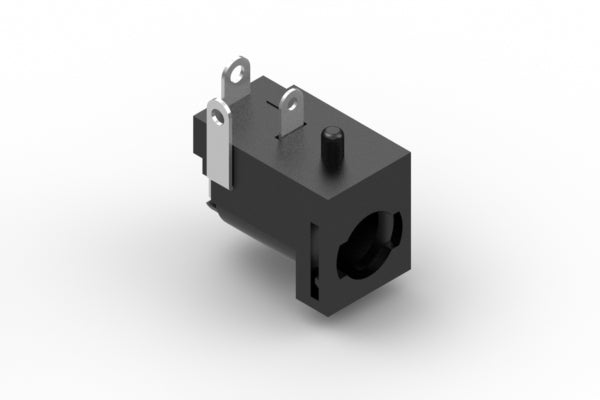

Connector, dc jack, 5.5x2.1xL15.2 mm, thru hole, 90°, silver plated, twist lock
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | silver |
| connector length | 15.2 mm |
| locking style | twist lock |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -20~70 °C |
| voltage rating | 48 V |
| current rating | 8.0 A |
| cycle rating | 5000 |
| HTS code | 8536.69.4040 |
| unit weight | 21.40g |
| Prop65 | Nickel |
