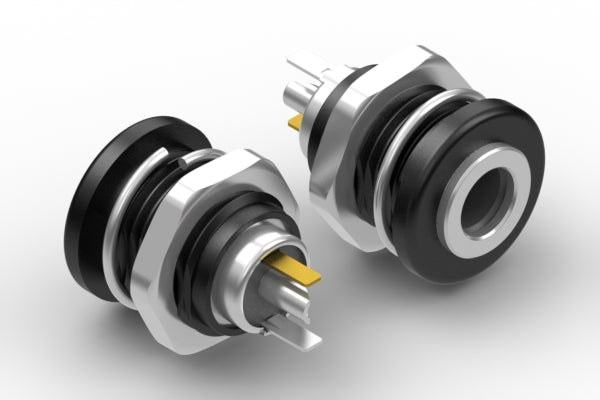

Connector, dc jack w/switch, 5.5x2.5xL22 mm, panel mount, nickel plated, threaded, nut and washer
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 22.0 mm |
| connector color | black |
| operating temperature | -50~200 °C |
| voltage rating | 48 V |
| current rating | 8.0 A |
| cycle rating | 5000 |
| features | panel mount |
| HTS code | 8536.69.4010 |
| unit weight | 8.00g |
| Prop65 | Nickel |
