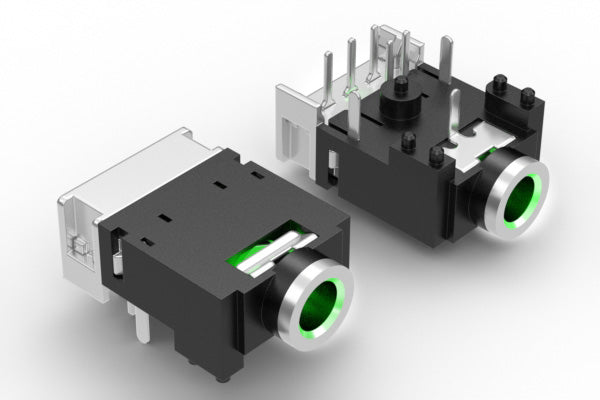

Connector, audio jack with green LED, 3C, 3.5xL18 mm, thru hole, silver plated
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | jack |
| connector orientation | 90° |
| # of connector contacts | 3 |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 18.0 mm |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -55~85 °C |
| voltage rating | 30 V |
| current rating | 2.5 A |
| cycle rating | 5000 |
| features | LED |
| HTS code | 8536.69.4040 |
| Prop65 | Nickel |
