Description
Description

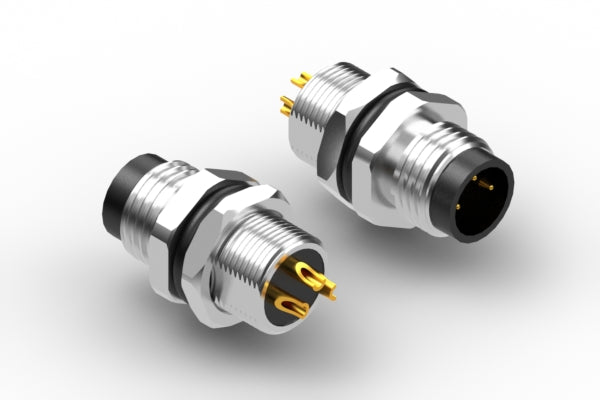

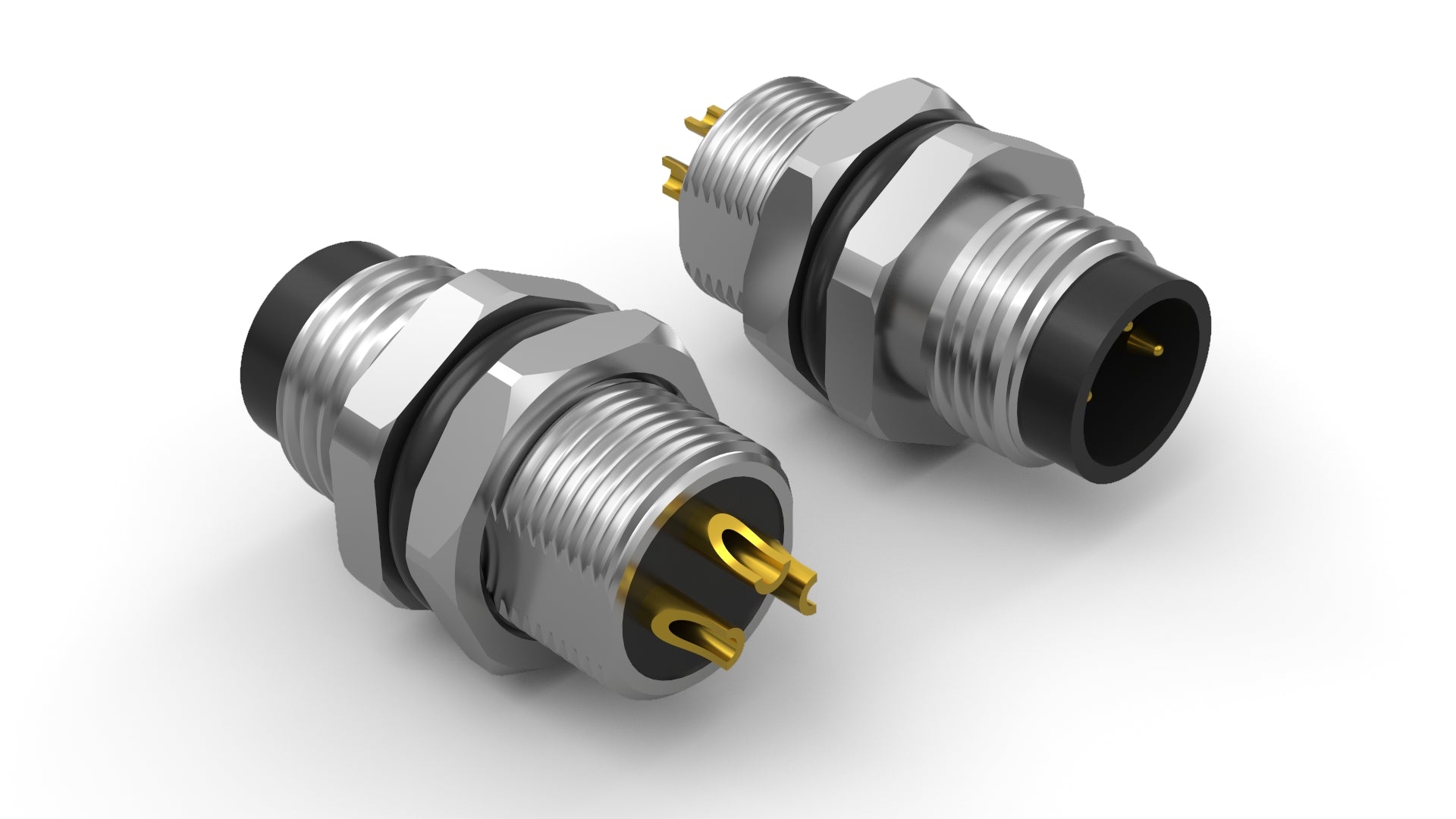

Connector, M8 A-code plug, 3 pin, 8xL19.2 mm, panel mount, solder cup, gold plated, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| connector orientation | 180° |
| M type | M8 |
| # of connector contacts | 3 |
| connector plating | gold |
| connector length | 16.5 mm |
| mounting style | panel mount |
| connector color | black |
| voltage rating | 60 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 3.28g |
| Prop65 | Nickel |
