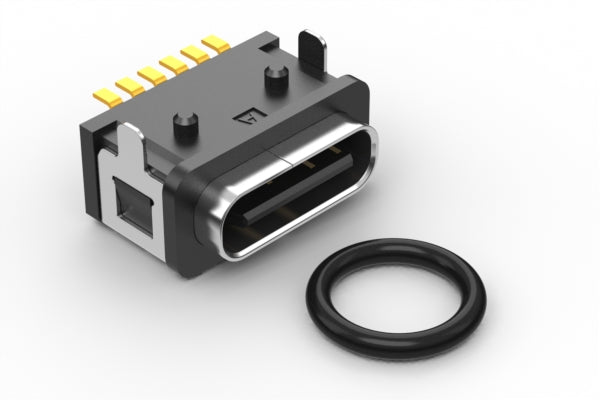

Connector, USB C power jack, thru hole, SMT, 90°, nickel plated, IPX7
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | jack |
| # of connector contacts | 6 |
| connector plating | nickel |
| connector length | 8.71 mm |
| mounting style | SMT |
| connector color | black |
| operating temperature | -30~85 °C |
| voltage rating | 30 V |
| current rating | 3.0 A |
| cycle rating | 10000 |
| features | waterproof |
| HTS code | 8536.69.4040 |
| unit weight | 5.32g |
| Prop65 | Nickel |
