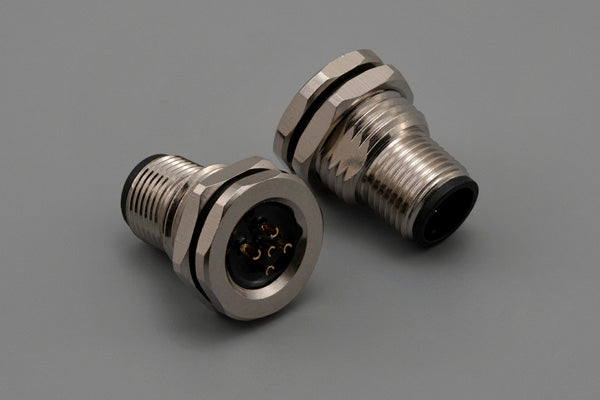

Connector, M12 A-code plug, 5 pin, 12xL24 mm, panel mount, solder cup, gold plated, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug |
| connector orientation | 180° |
| M type | M12 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 24.0 mm |
| mounting style | panel mount |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4030 |
| unit weight | 18.65g |
| Prop65 | Nickel |
